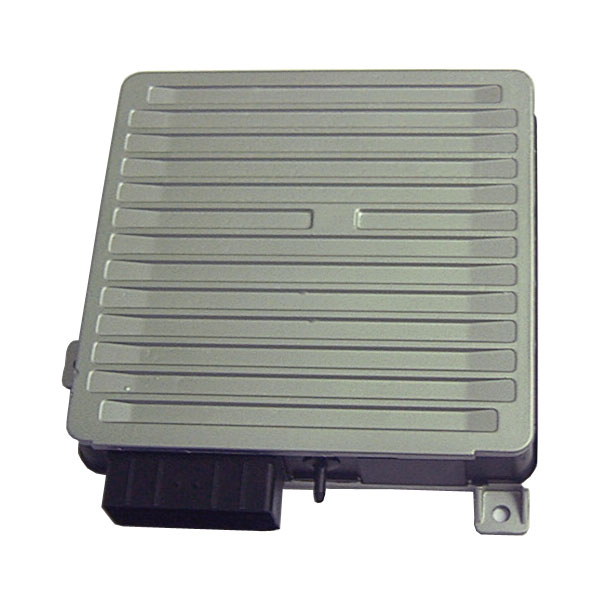

MEMS 1.6 ECUs
Overview
Please see the sections below, I can provide diagnostic applications and cables for the MEMS 1.6 ECU

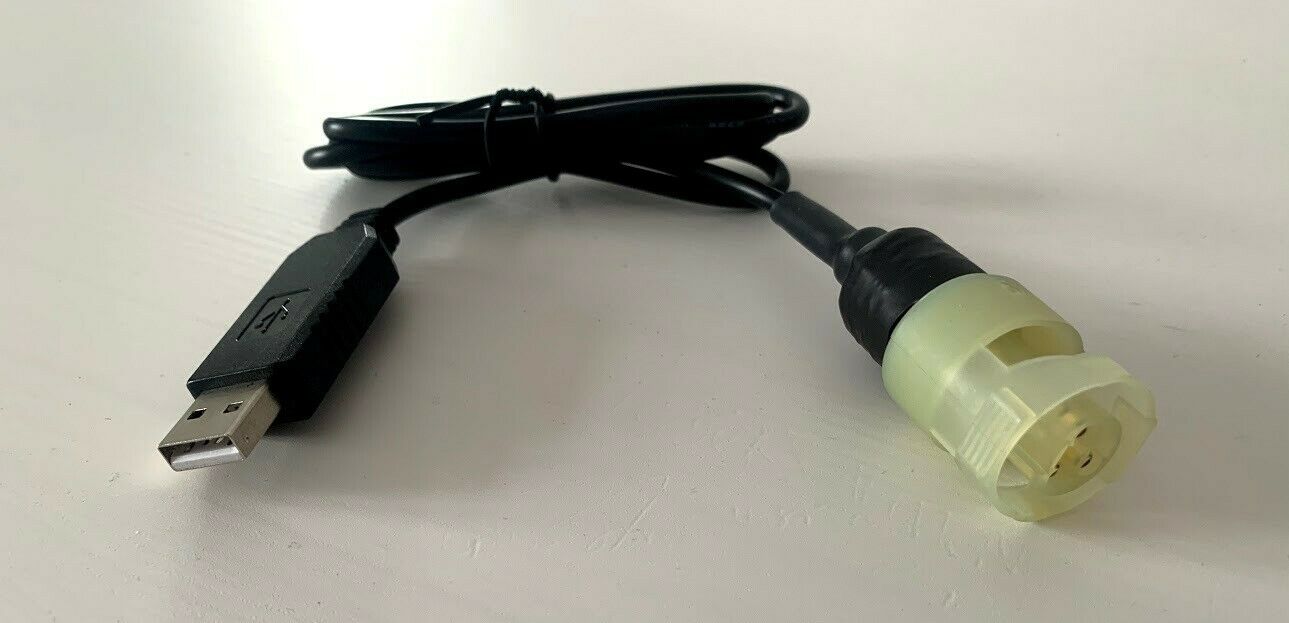

3 pin diagnostic cable
This cable suits all cars with the MEMS 1.6 ECU
Check your car for the correct connector, ask if you are not sure
I am now selling these directly from the website, secure payment taken via stripe.com
I post using Royal Mail with tracking, I will send you the tracking link once the postage has been arranged.
Diagnostic application - Windows/Mac/Linux
The most up to date application is here for Windows/Linux
Web/agent application
This is a web based application that works in Windows/Max/Linux computers or laptops
Web application
Diagnostic application - Android phone and tablet
The Android app works with MEMS 1.6 ECUs while using an appropriate cable.
The cables are full size USB so you will likely need to buy an "OTG" adaptor that fits between your device and the USB cable.
Android app in the Google Play store
Remapping
Remapping these is difficult due to hardware restrictions.
It may be possible to make a piggyback in order to alter ignition timing but this will take more work to finish and test.
Even so, I can download the original data from these ECUs,
There is an online editor for ECU maps here: ROM Editor
Technical information - diagnostic communication
In case you are a programmer or would like more info about communication with the ECUs for diagnostics, here it is
Connect at 9600 Baud rate, 8 bits, 1 stop bit, NO parity
"Normal" serial communication - ECU has a TX and RX pin, plus a signal ground
Shared data packet format with 1.2/1.3/1.6/1.9 ECUs, see The technical page
Disclaimer: This website is not associated with Rover in any way. This exists because there is no support for these older cars/ECUs
